92000.00元/台 | |
1台 | |
45 台 | |
自买家付款之日起7天内发货 | |
满意机床 | |

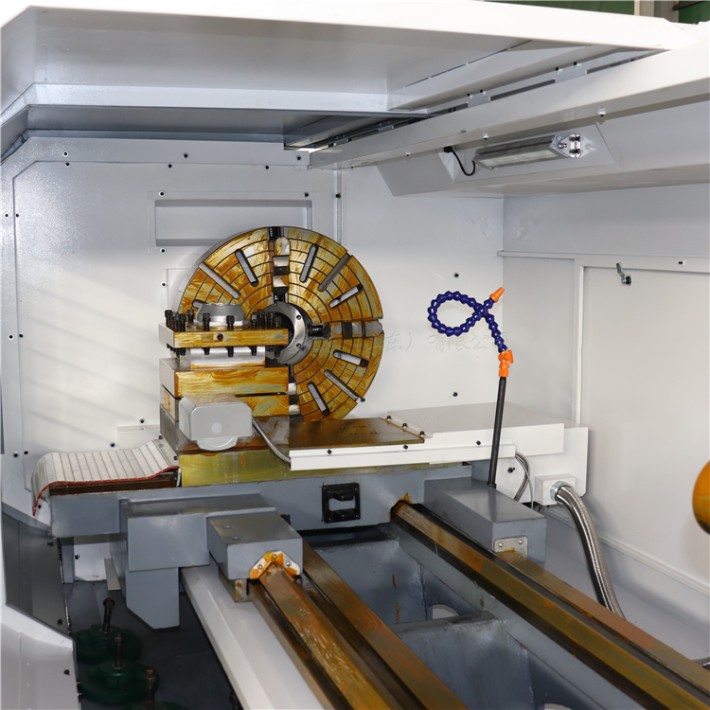

CK6180 |
机床型号 Item CK6163
床身回转直径mm Swing over bed(mm) 630
托板上回转直径mm Max rotative diameter on carriage(mm) 400
加工长度mm Max processing length(mm) 1000/1500
主轴传动形式 Form of main transmission 三档机械变速,档内无极调速/Three mechanical transmission,Frequency conversion in stepless way
主轴转速级数 Number of spindle speed 无极/Infinite variable
主轴转速r/min Spindle speed range(r/min) 25-850
主轴头形式 Spindle nose C11
主轴孔前端锥度 Taper of spindle hole 公制(metric system)120 1:20
主轴通孔直径mm Through-hole diameter of spindle(mm) 105
主电机功率KW Main motor power(kw) 11
X/Z轴定位精度mm X/Z Positioning precision(mm) 0.025/0.03
X/Z轴重复定位精度mm X/Z Repeatability precision(mm) 0.01/0.015
工件加工精度 Processing precision IT6-IT7
工件表面粗糙度 Rough degree of processing surface Ra1.6
X快移速度mm/min X-axis rapid traverse rate(mm/min) 4000
Z快移速度mm/min Z-axis rapid traverse rate (mm/min) 5000
尾座套筒直径mm Dia.of tailstock sleeve(mm) 100
尾座套筒内孔锥度 Taper of tailstock sleve MT6#
尾座套筒移动量mm Tailstock sleeve stroke(mm) 250
刀架形式 Type of tool carrier 电动立式四工位刀架(Vertical 4 position electrical tool post)
滚珠丝杠直径*螺距(mm) Ball screw dia*thread pitch(mm) X:32*05 Z:50*10
刀架行程X/Z(mm) Maximum travel of tool slide X/Z(mm) 500/1200,1650
机床外形尺寸((L×W×H)mm L*W*H(mm) 3200(3700)*1820*1780
机床重量Kg weight(kg)
3400/3700
